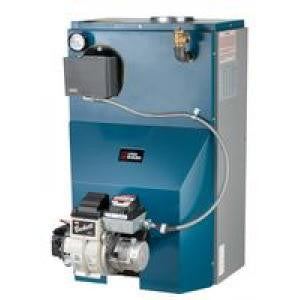

The new Starfire IV oil-fired water boiler is available in 9 sizes from 103 MBH to 252 MBH and features a dependable cast iron heat exchanger and a Honeywell High Limit and Circulator Relay Control with digital temperature display and diagnostics. In the SFH-W IV Less Coil: The control monitors water temperature and delays the burner starting until any residual heat has been transferred. Thermal purge logic measures rate of temperature change inside the boiler and delays the burner firing accordingly. Thus maximizing efficiency by turning on the burner only when needed. In With Coil units: The boiler utilizes a Honeywell non-thermal purge High Limit, Low Limit and Circulator Relay control. The new SFH-W IV features a Limited Lifetime Warranty (Residential Applications).

Features

• Efficiency: Mid-Efficiency
• Heat Exchanger: Cast Iron
• Combustion: Atmospheric
• Venting: Chimney Vent
• Boiler Type: Hot Water
• Boiler Controls: Primary Control, High Limit and Circulator Control.
• Heat Exchanger: Cast Iron Heat Exchanger with Cast Iron Push Nipples. Swing out Burner Door.
• Combustion: Oil Burner, Target Wall/Liner. Electrical: Wiring Harness, Burner Electrical Disconnect.
• Other
• Crated Boiler
• Flush Jacket
• Circulator- 1¼”
• Supply Tapping-2”
• Return Tapping-1 1/2”
• Temperature Pressure Gauge
• Safety Relief Valve
• Drain Valve

For Tankless Heater Units  add Tankless Hot Water Coil and Triple Combination High Limit/Low Limit/Circulator Control.

Options

• Taco, Grundfos or Less Pump
• Tankless Coil
