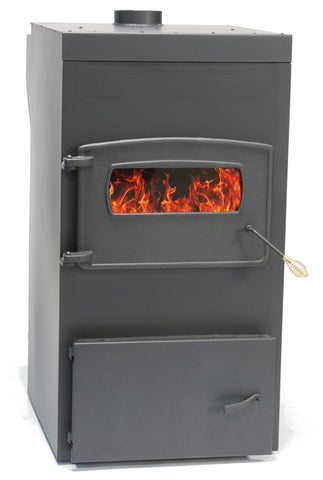

Keystoker Koker and Koker Lite : Automatic Coal Furnace
The Keystoker 160,000 BTU and Lite 105,000 BTU double wall constructed Koker furnaces have a 9" wide flat grate stoker and patented thermal heat exchanger. This popular furnace can be used as an add-on or used freestanding to heat a small home. It comes with an opening on the front (3 X 25) and an opening on the top (11X19) to distribute warm clean air into your home.
Features
-
Tested at 88 to 90% Efficiency
-
The Koker can be chimney vented or direct vented
-
Completely automatic, working off a Honeywell Room Thermostat
-
Optional stainless steel water coil available
- Flat Grate Design
- Made in USA
- Fresh air wash system helps to keep glass cleaner
- Automatic Feed
- Uses Clean burning Anthracite Coal: Rice, buckwheat or a blend of both
- Fabricated of Heavy gauge steel, cast iron grates, ash door and fire door
- 1 year electrical warranty
- 5 year furnace warranty
Specifications |
KOKER LITE |
KOKER |
BTU’s |
105,000 BTU |
160,000 BTU |
Flue Exit |
Top or Rear vent |
Top or Rear |
Flue Size |
6” |
6” |
Rear Flue Height |
5” |
5” |
Height |
44” |
49” |
Depth |
42.5” |
49” |
Width |
28” |
26” |
Weight |
400 lbs |
700 lbs |
Hopper capacity |
200 lbs |
240 lbs |
Blower CFM |
1000 cfm |
1500 cfm |
Glass Door |
Optional |
Yes |
Side Clearance |
8” to no combustible 16” to combustible |
18” |
Rear Clearance |
Zero clearance |
18” |
