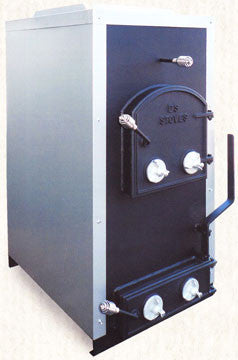

DS Machine Coal and Wood Furnace Ecomiser #200-10

  • $0.00


The Economiser was designed to be economical. This UL Listed Coal and Wood burning furnace is controlled with a bi-metal regulator, combining with secondary combustion for maximum efficiency, using less fuel. The Economiser offers a domestic water option and  single-speed blower. It can heat a whole house, shop, or greenhouse for less money.

Features

  • Burns coal and wood
  • Hot air Furnace
  •  Heats up to 2500sq. feet
  • Preset secondary combustion
  • Bi-metal draft regulator
  • Built from heavy plate steel
  • Superior cast iron shaker grates
  • Cast iron airtight doors
  • Large loading door
  • Large Ash Pan
  • Auto on and off blower
  • Removable oxygen reburn system
  • Optional 18' x 18" filter
  • Box with left or right inlet
  • Exterior Shaker handles
  • Minimal dust
  • Made in the USA



Specifications

Fuel Coal and Wood

Heating Area 1000-2500 sq. ft.

Efficiency 76.4%

BTU approximately  120,000

Firebox Size (WxD) 16" x 24"

Fire box volume 5.5 cu. ft.

Log Size 22"

Overall size (W x D x H) 24" x 29.5" x 49.75"

Depth including filter Box 50.5"

Load Door Size (W x H) 14" x 14.5"

Ash Door Size (W x H) 16.5" x 5.5"

Top Exhaust  Not available for this unit

Rear Exhaust 6" - 44" center of Flue

Plenum inlet and outlet  18" x 18"

Blower CFM 965

UL Tested Yes

Weight 500 lbs

Insulated Jacket Standard

Warranty 5-year limited  and 1-year electrical



Clearances From Combustibles

Side 18"

Back 24"

Front 48"

Flue/Stove pipe 18"

Top of plenum to ceiling 2"


PDF DS FURNACE SPECIFICATIONS AND DIMENSIONS
