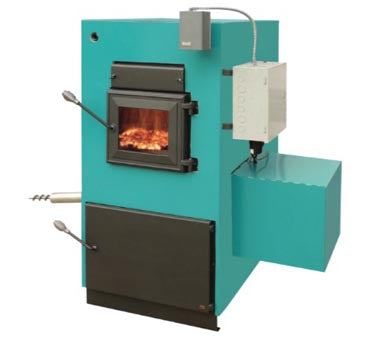

DS AQUA-STOKE: AUTOMATIC BOILER

DS AQUA-STOKE: AUTOMATIC BOILER

  • Aqua-Stoke

    Auger-Fed Stoker Boiler

    Model #SB200

    DS is a family owned business that was established in 1978. DS has over 30 years of experience with designing and manufacturing solid fuel stoves and boilers. In 2015 DS started the research and development of the Aqua-Stoke. It is an auger fed stoker with a pot burner, designed to burn rice coal. It is designed to feed the coal from an optional 500 lb . hopper or coal bin. This unit is constructed with a “built to last” attitude.

    • Burns rice coal
    • Built from heavy plate steel
    • Cast iron airtight glass fire door with knife edge seal
    • 1175 lbs (Base 176 lbs, Boiler 775 lbs, Components 224 lbs)
    • 50,000-230,000 BTU's
    • Heating area: 1000-5000 sq ft.
    • Fire Box Size: 20" x 18" x 18.25"
    • Burn Pot Size: 10"
    • Water Capacity 50 gallons
    • Optional 500 lb. hopper
    • Auger-fed round fire pot with complete breakdown “floating” design
    • R/h or l/h feed option
    • Outfire auger and blower shutoff with light indicator
    • Large 10” high ashpan for longer burn time and optimal spillage control
    • 8” rear exhaust
    • Variable speed blower and auger
    • Optional 4 or 5 gallon- per-min domestic hot water coil
    • Heavy duty heat exchanger
    • High-efficiency motors for a total power consumption of 1 .7 amps
    • Optional insulated jacket
    • Multiple easy access panels for maintenance and cleaning
    • Made in the USA



  • Auger-fed round fire pot with complete breakdown “floating” design
  • R/h or l/h feed option
  • Out-fire auger and blower shutoff with light indicator
  • Large 10” high ash pan for longer burn time and optimal spillage control
  • 8” rear exhaust
  • Variable speed blower and auger
  • Optional 4 or 5 gallon- per-min domestic hot water coil
  • Heavy duty heat exchanger
  • High-efficiency motors for a total power consumption of 1 .7 amps
  • Optional insulated jacket
  • Multiple easy access panels for maintenance and cleaning
  • Made in the USA

Clearances:

Side: 12" (Unless control side then 21")
Back: 30"
Front: 36"
Flue/Stove: 18"
Ceiling: 18"

Additional Requirements for hopper or auger kit:

         5 ft. Auger and pipe kit

         8 ft. Auger and pipe kit

         Stainless Steel 500lb. Hopper

other options:

        4 gpm. Domestic Coil

        5 gpm. Domestic Coil

          Insulated Jacket



 PDF DS AUGER-FED BOILER SPECIFCATIONS AND DIMENSIONS
