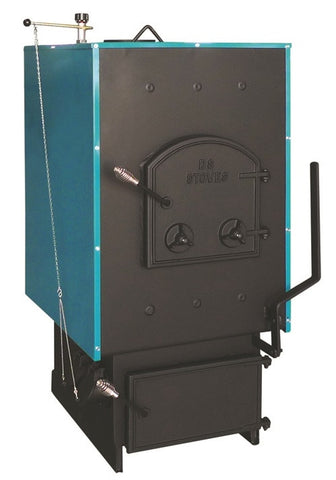

DS Machine Coal and Wood Boiler: Aqua Gem Boiler #3200
This hydronic system requires no electricity to heat water for floor heating, baseboard, freestanding radiators, heat pumps, or domestic water. It works well with new or existing oil or electric boilers. Our boilers circulate water in the front to prevent cracking. Each unit is pressure tested to 120 PSI and has a powerful heat exchanger for maximum efficiency. Constructed from 1/4" steel, this Aqua-Gem boiler easily maintains water temperature and features a large capacity ash pan. All boilers are designed with the best cast iron grate system and built to last.
Features
- Burns Coal and Wood
- Safety tested to UL Standards
- Secondary combustion system
- Heavy duty cast iron grate system with external shaker handle
- 1/2" NPT fitting for temperature pressure gauge
- 3/4" NPT fitting for ASME pressure relief valve
- 3/4" NPT fitting for Aquastat
- 3/4" fitting for Samson draft regulator
- Large 6" high ash pan
- Optional 4-gallon per minute domestic water coil
- Optional forced drat
- Optional insulation/sheet metal cabinet
- Made in the USA
Specifications
Fuel Coal and Wood
Heating Area 2000-3500 sq. ft.
Efficiency 78%
BTU approximately 160,000
Firebox Size (WxD) 19" x 24" x 25"
Fire box volume 7.0 cu. ft.
Log Size 22"
Overall size (W x D x H) 26" x 30" x 53.5"
Load Door Size (W x H) 14" x 14.5"
Ash Door Size (W x H) 16.5" x 9"
Top Exhaust 7" Standard
Rear Exhaust 7" - 42.5" center of Flue
Water capacity 40 gallons
Inlet/ Outlet 2"
UL Tested Yes
Weight 1050 lbs
Insulated Jacket Optional
Warranty 5-year limited and 1-year controls
Clearances From Combustibles
Side 12"
Back 16"
Front 48"
Flue/Stove pipe 18"
Top of plenum to ceiling 36"
